Stock code：600071
-

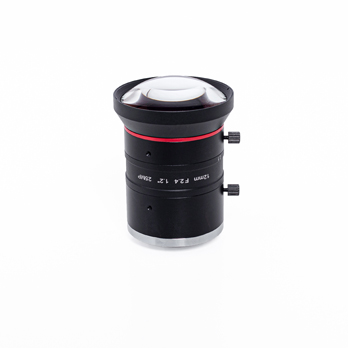

12FA1224-25MP
-

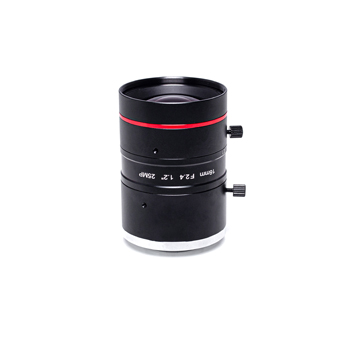

12FA1624-25MP
-

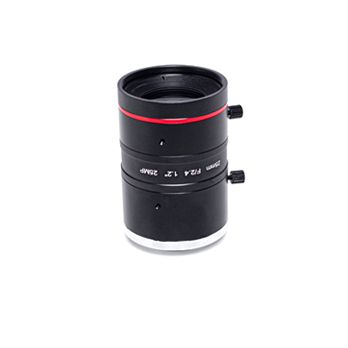

12FA2524-25MP
-

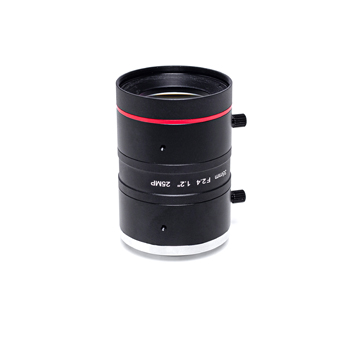

12FA3524-25MP
-

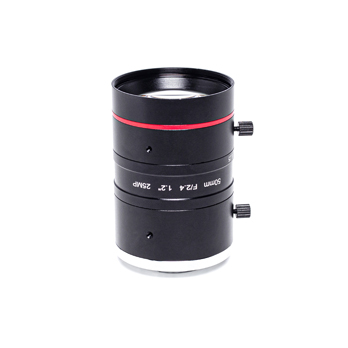

12FA5024-25MP
25MP 1.2" Low-distortion Industrial Lens
- Description
- Features
- Download
-
Compatible with the latest 1.2" camera
Backward compatible with 1" and 1.1" camera
25MP ultra high resolution perfectly fits the requirement of high-end machine vision
材質
Model
12FA1224-25MP
12FA1624-25MP
12FA2524-25MP
12FA3524-25MP
12FA5024-25MP
光圈(mm)
Focal Length
12mm
16mm
25mm
35mm
50mm
像面盡寸(φ)
Image Size
φ19.3
φ19.3
φ19.3
φ19.3
φ19.3
手機像素規格(μm)
Pixel Size
2.74μm
2.74μm
2.74μm
2.74μm
2.74μm
光圈條件(F數)
F-Number
F2.4-16
F2.4-16
F2.4-16
F2.4-16
F2.4-16
操作多遠(mm)
Working Distance
100mm-∞
100mm-∞
150mm-∞
150mm-∞
250mm-∞
的控制
Control
光圈
Iris
自功 Manual
人工手動開啟機組 Manual
人工 Manual
自動改手動 Manual
人工機械 Manual
焦聚
Focus
速騰自動檔 Manual
人工機械 Manual
自動 Manual
半自動 Manual
人工操作 Manual
前段時間物距視場空間(mm)
Minimum Object Distance
FOV
-149.68 x -129.48
-105.17 x -90.98
-88.89 x -76.71
-63.65 x -55.06
-74.71 x -64.63
視場角(°)
Angle of View
1.2"
62.33x55.33x76.12
48.83x42.86x61.36
31.42x27.32x41.19
22.51x19.53x29.33
15.66x13.57x20.50
1.1"
54.5x54.5x71.6
42.12x42.12x57.24
27.58x27.58x38.32
19.1x19.1x26.76
13.28x13.28x18.76
1.0"
56.2x43.6x71.08
43.46x33.24x53.04
28.52x21.58x35.3
19.76x14.9x24.54
13.76x10.34x17.22
甄別率
Resolution
25MP
25MP
25MP
25MP
25MP
TV失真
(最近的物距至無窮遠******崎變值)
Max TV Distortion
0.870
0.073
-0.106
-0.072
0.062
基準值本職工作間距TV崎變
(200mm-400mm)%
Optimal TV Distortion
0.390
0.070
-0.040
0.015
0.011
接口方式
Mount
C
C
C
C
C
廣角鏡頭圖片尺寸(mm)
Filter Size
M40.5*0.5
M37*0.5
M40.5*0.5
M40.5*0.5
長焦長寬比(mm)
Dimension
φ50*66.96
φ42.5*59.76
φ40*58.44
φ42*59.32
φ42*61.16
質量(g)
Weight
218.5
189.5
161.7
174
179
濕度空間(°)
Operating Temperature
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-
-
